HIKVISION

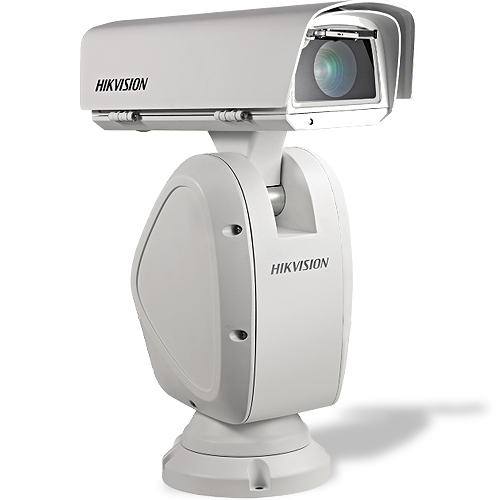

DS-2DY9250X-A

0

Genel Özellikler

Lens
FOV : Horizontal field of view: 41.3° to 1.1° (wide-tele),Vertical field of view: 23.6° to 0.6° (wide-tele),Diagonal field of view: 47.4° to 1.3° (wide-tele)
Zoom Speed : Approx. 4.5 s (optical lens, wide-tele)
Working Distance : 10 mm to 1500 mm (wide-tele)
Aperture Range : F1.8 to F5.5
Focal Length : 6.6 mm to 330 mm, 50× Optical

Image Enhancement : HLC/BLC/3D DNR/Defog/OIS/Regional Exposure/Regional Focus
Sub-Stream : 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution : 1920 × 1080
Main Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream : 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network Storage : Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API : Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View : Up to 20 channels
User/Host : Up to 32 users. ,3 levels: Administrator, Operator and User
Client : iVMS-4200, iVMS-5200
Web Browser : IE 8+, Firefox 30+, Safari 8.0+ web browser
Security Measures : User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm Linkage : Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface
BNC : 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
Alarm Output : 2-ch alarm output
Alarm Input : 7-ch alarm input
Audio Input : 1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
Audio Output : 1-ch audio output, line level, impedance: 600 Ω
Network Interface : 1 RJ45 10 M/100 M Ethernet Interface
RS-485 : Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Fiber Cable : 1 1000 M FC interface, TX1310/ RX1550 nm wavelength, 20 km transmission distance

Compression Standard
H.264+ : Support
H.265+ : Support
H.264 Type : Baseline Profile/Main Profile/High Profile
Video Compression : Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 Type : Main Profile
Video Bitrate : 32 kbps to 16384 kbps
Audio Compression : G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
SVC : Support

Camera Module
AGC : Auto/Manual
Image Sensor : 1/2.8" progressive scan CMOS
Min. Illumination : Color: 0.05 Lux @(F1.8, AGC ON),B/W: 0.01 Lux @(F1.8, AGC ON)
White Balance : Auto/Manual/ATW (Auto-tracing White Balance)/ Indoor/Outdoor/Fluorescent lamp/Sodium lamp
Shutter Time : 1/1 s to 1/30,000 s
Day & Night : IR Cut Filter
Digital Zoom : 16×
Privacy Mask : 24 programmable privacy masks
Focus Mode : Auto/Semi-automatic/Manual
WDR : 120 dB WDR

PTZ
Movement Range : (Pan)360° endless
Pan Speed : Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Movement Range (Tilt) : From -90° to 40° (auto-flip)
Tilt Speed : Configurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s
Proportional Zoom : Support
Presets : 300
Patrol Scan : 8 patrols, up to 32 presets for each patrol
Pattern Scan : 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory : Support
Park Action : Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display : ON/OFF
Preset Freezing : Support
Scheduled Task : Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features
Smart Detection : Face Detection, Intrusion Detection, Line Crossing Detection, Audio Exception Detection, Region Entrance Detection, Region Exiting Detection
Smart Record : ANR (Automatic Network Replenishment), Dual-VCA
ROI : Main stream, sub-stream and third stream respectively support eight fixed areas.

General
Material : Aluminum alloy ADC12
Dimensions : Φ390 mm × 491 mm (Φ 15.35" × 19.33")
Approx. : 11 kg (24.25 lb)
Protection Level : IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power : 24 VAC (Max. 70 W)
Working Temperature : Temperature: -40°C to 70°C (-40°F to 158°F)
Working Humidity : Humidity: ≤ 90%
