Apartman Tipi Zil Paneli 4.3 inç IPS ekran; ekran çözünürlüğü 800 × 480 2MP CMOS; gerçek WDR Alüminyum anot yüzeyi; metal düğme; IP65, IK07 Otomatik ışık aydınlatması ışık kirliliğini azaltır Çoklu kilit açma modları: Şifre kilidini açma, IC kart kilidini açma ve uzaktan kilit açma 20.000 kullanıcı ve 10.000 kart desteği

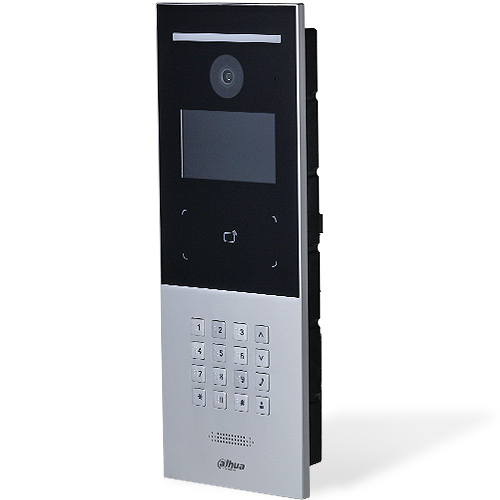

Apartment Door Station
> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Aluminum anode surface; metal button; IP65, IK07
> Operating temperature: -30°C to +60°C
> Auto light illumination reduces light pollution
> Multiple unlock modes: Password unlock, IC card unlock, and remote unlock
> Support 20,000 users and 10,000 cards
> Support full duplex; management platform, and voice call through APP
> Support SIP server, and can manage 200 indoor monitors at most
> Support duress alarm, tamper alarm, and door sensor timeout alarm
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Mechanical
Network Protocol
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
ROM
4GB
RAM
1GB
Basic
Display Screen
4.3 inch IPS screen
Resolution
800×480
Camera
1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
Fngle of View
Horizontal: 113.79°; vertical: 61.5°;
diagonal: 134.45°
Focal Length
2.8mm
Aperture
F2.0
WDR
120dB
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main Stream: 720p, sub stream: 1080P
Frame Rate
Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps)
Video Bit Rate
256Kbps–2048Kbps
Light Compensation
Auto white light
Audio Compression
G.711u
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Full duplex communication
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication Mode
Full digital
Unlock Mode
Card/remote/password unlock
Card Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Yes
Leave Videos or Text Messages
Web Configuration
Performance
Card Reading Distance
1cm–5cm
Issue Card Locally
Casing Material
Aluminum alloy
Capacity
Card
10, 000
Port
RS-485
Wiegand
1 input port, 1 output port
Electric Lock
Alarm Input
2
Alarm Output
Power Output
1 12V/100mA
Exit Button
Door Status Detection
Lock Control
1, normally open by default
Network
1 RJ-45 10Mbps/100Mbps self-adaptive
Alarm
Tamper
General
Password Unlock Mode
User password/public password/duress password
Color
Silver
Power Supply Mode
DC 12V2A
Power Adapter
Optional
Installation
Surface mount and Flush mount
Certification
CE/FCC
Accessory
Product Dimensions
389 mm×145 mm×41.9 mm (15.31"×5.71"×1.65")
Protection Grade
IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature
-30°C to +60°C (-22°F to +140°F )
Operating Humidity
10%RH–90%RH (non-condensing)
Operating Altitude
86kPa–106kPa
Power Consumption
≤5W (standby), ≤18W (working)
Net Weight
1.4 kg (3.09 lb)
Gross Weight
1.68 kg (3.70 lb)
