IP Apartman Tipi Zil Paneli 4,3 inç IPS ekran; ekran çözünürlüğü 800×480 2MP CMOS; gerçek WDR Otomatik ışık aydınlatması. Çoklu kilit açma modları: Şifre kilidi açma, IC kart kilidi açma, uzaktan kilit açma, parmak izi kilidi açma ve yüz kilidi açma 20.000 kullanıcı, 10.000 yüz görüntüsü, 10.000 kart ve 10.000 parmak izi desteği Yüz tanıma hızı: Kişi başına 0,2 saniye Canlılık algılama desteği. Zorlama alarmı, kurcalama alarmı ve kapı sensörü zaman aşımı alarmını destekler

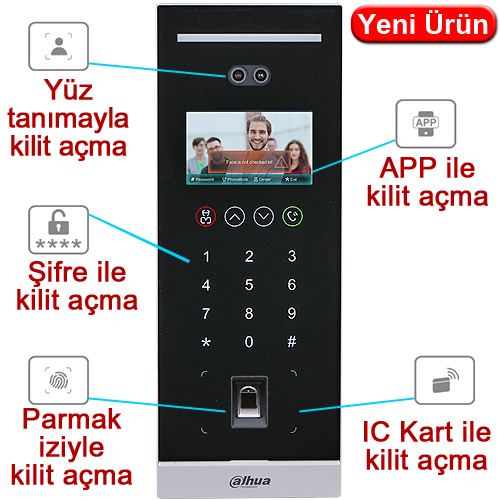

IP Face Recognition Apartment Door Station
> 4.3 inch IPS display; screen resolution 800×480
> 2MP CMOS; true WDR
> Face-camera distance: 0.3 m–2 m; human height: 1.1 m–2.4 m (lens ground distance: 1.4 m)
> Operating temperature: -30°C to +60°C
> Auto light illumination reduces light pollution
> Multiple unlock modes: Password unlock, IC card unlock, remote unlock, fingerprint unlock, and face unlock
> Support 20, 000 users, 10,000 face images, 10, 000 cards, and 10,000 fingerprints
> Face recognition speed: 0.2 second per person
> Support liveness detection
> Support duress alarm, tamper alarm, and door sensor timeout alarm
> Various unlock status display modes protect user privacy
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Touch button
Network Protocol
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
ROM
4GB
RAM
1GB
Basic
Display
4.3 inch IPS screen
Screen Resolution
800×480
Camera
1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
Field of View
Horizontal: 87.42°; vertical: 46.48 °;
diagonal: 104.13°
Focal Length
4.0 mm
Aperture
F1.6
WDR
120dB
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main Stream: 720p, sub stream: 1080P
Frame Rate
Main Stream (720P@25fps), sub stream (1080P@25fps) Main Stream (720P@30fps), sub stream (1080P@30fps)
Video Bit Rate
256Kbps–2048Kbps
Light Compensation
Auto white light Auto IR light
Day/Night
ICR auto switch
Audio Compression
G.711u
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Full duplex communication
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication Mode
Full digital
Unlock Mode
Card/Remote/Password/Fingerprint/Face unlock
Card Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Yes
Leave Videos or Text Messages
Web Configuration
Performance
Card Reading Distance
1cm–5cm
Issue Card Locally
Face Recognition Height Range
1.1m–2.4m is recommended
Face Recognition Distance
0.3m–2cm
Face Recognition Configuration
Recognition threshold Facial profile angle
Face Verification Accuracy
99.5%
Face Recognition Time
0.2s
Fingerprint Sensor Type
Capacitive
Casing Material
PC+ABS
Capacity
Card
10,000
Face Image
Fingerprint
Port
RS-485
Wiegand
1 (input or output, configurable)
Electric lock
Alarm Input
2 (Digital quantity)
Alarm Output
Power Output
1 12V/100mA
Exit Button
Door Status Detection
Lock Control
1, normally open by default
Network
1 RJ-45 10Mbps/100Mbps self-adaptive
Tamper
General
Unlock Password Mode
User password/public password/duress password
Color
Silver
Power Supply Mode
DC 12V2A
Power Adapter
Optional
Installation
Surface mount and Flush mount
Certification
CE/FCC
Accessory
Product Dimensions
388.5 mm×145.5mm×43.5mm
(15.30" ×5.73"×1.71")
Protection Grade
IP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Operating Humidity
10%RH–90%RH (non-condensing)
Operating Altitude
86kPa–106kPa
Power Consumption
≤5W (standby), ≤18W (working)
Net Weight
1.0 kg (2.20 lb)
Gross Weight
1.29 kg (2.84 lb)
